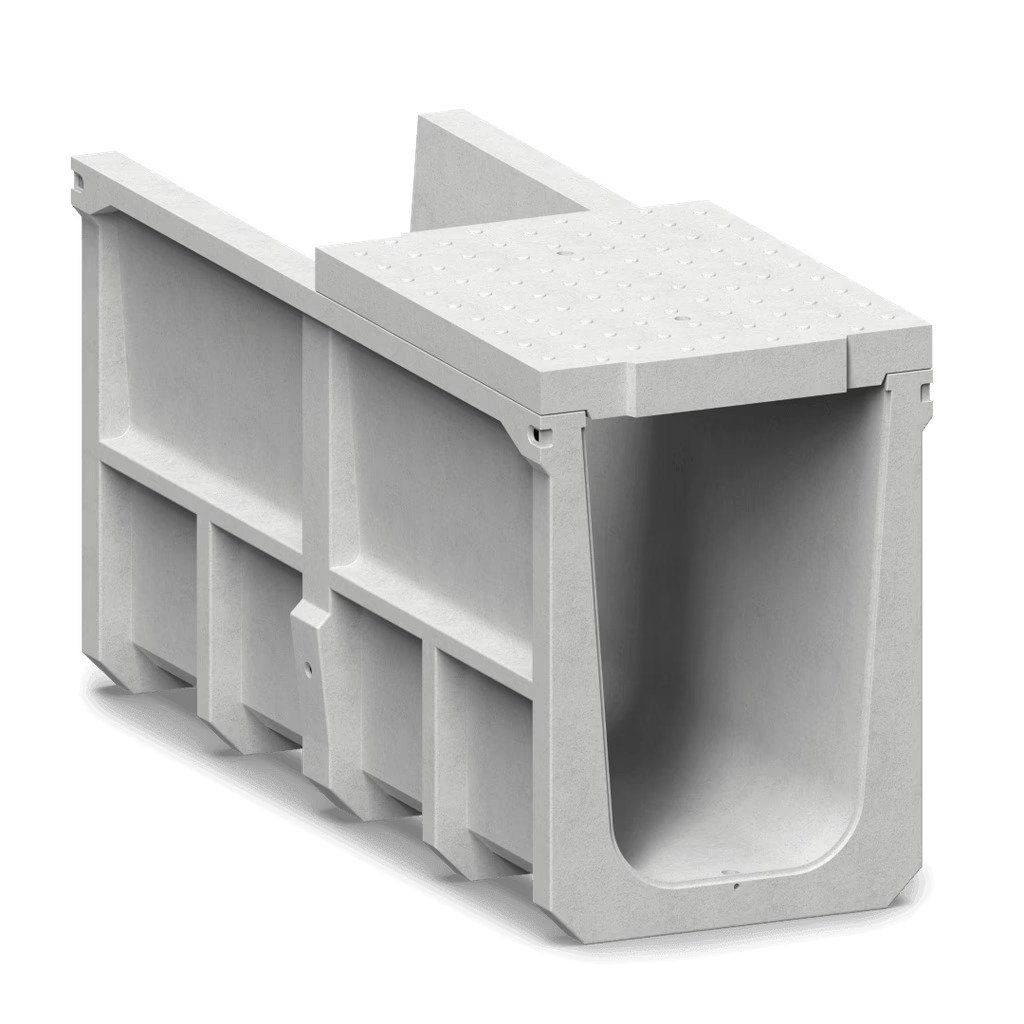

FT – Flume

Delfy Infratech’s FT-Flume is a precast open-channel solution engineered for efficient collection, guidance, and controlled movement of surface water across agricultural, industrial, and infrastructure applications. Its open-top profile provides a clear flow path with minimal obstruction, helping maintain smooth and consistent water movement.

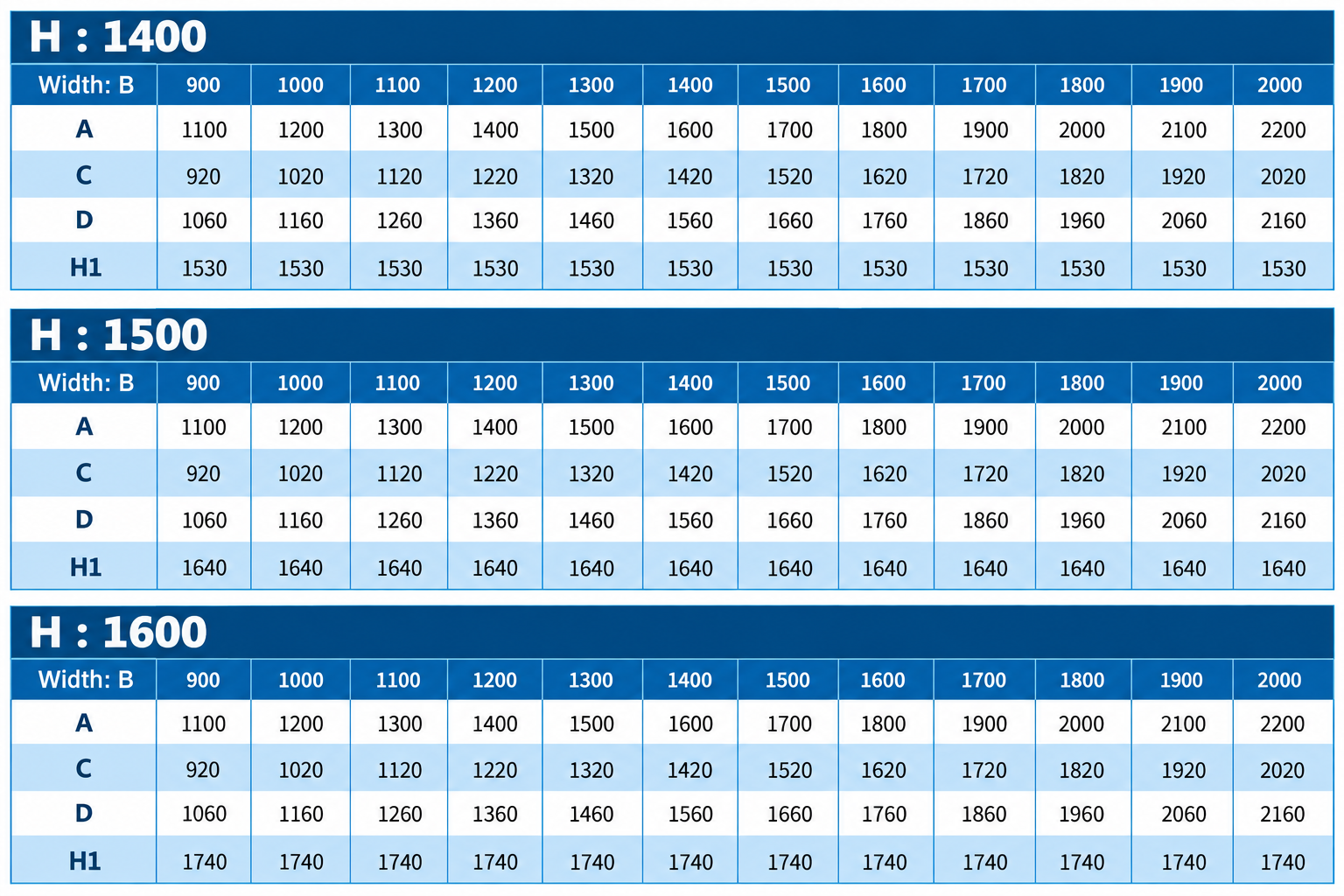

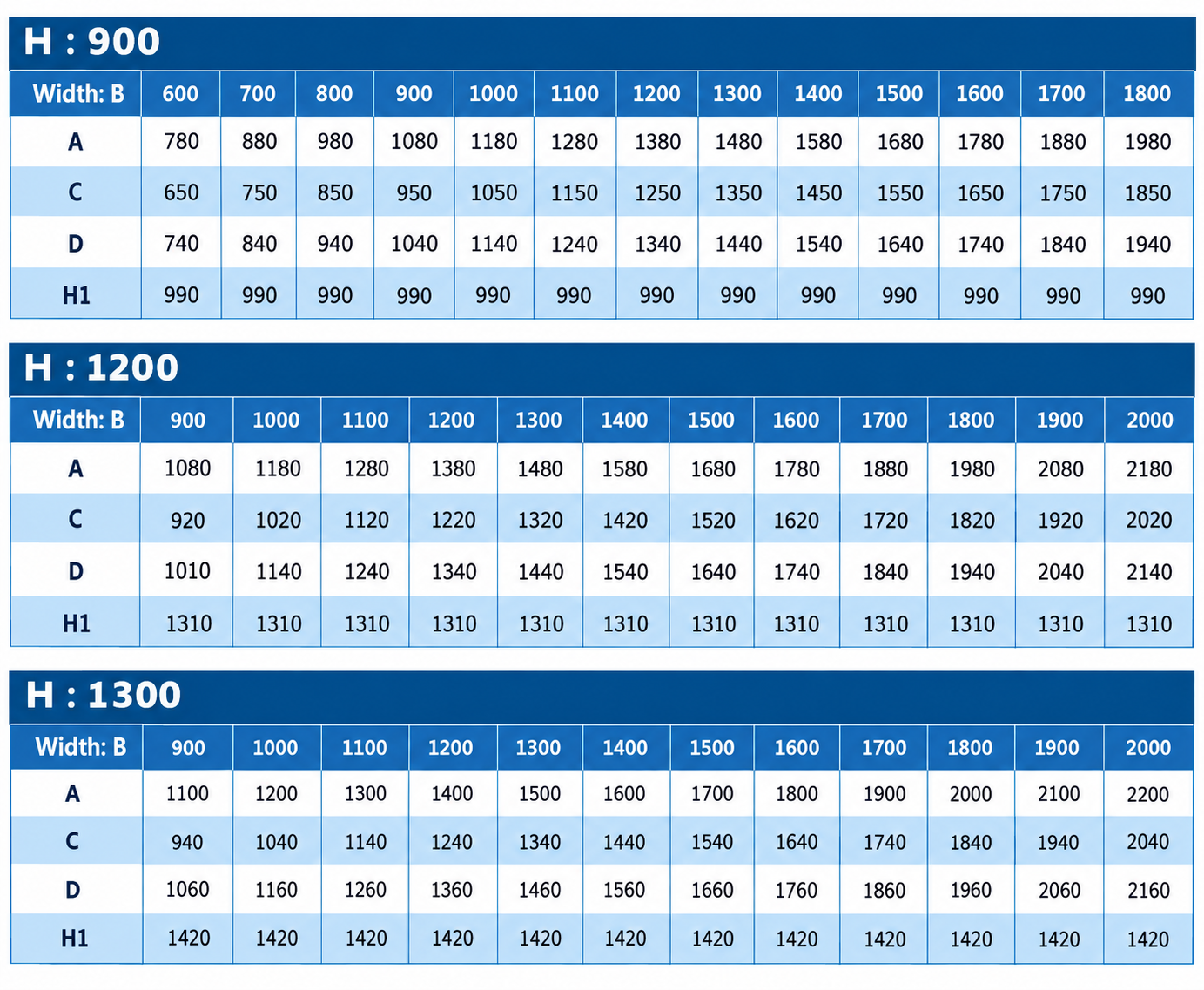

Available in heights from 900 mm to 1600 mm and widths from 600 mm to 2000 mm, the FT-Flume can accommodate a wide range of project and flow requirements. Manufactured from reinforced concrete and designed for a live load of 1 T/m² (10 kN/m²), it provides the strength and durability required for long-term outdoor use.

Specification

Product TypePrecast Open-Channel Flume
MaterialReinforced Precast Concrete
Available Height900 mm – 1600 mm
Available Width600 mm – 2000 mm
Design Live Load1 T/m² (10 kN/m²)

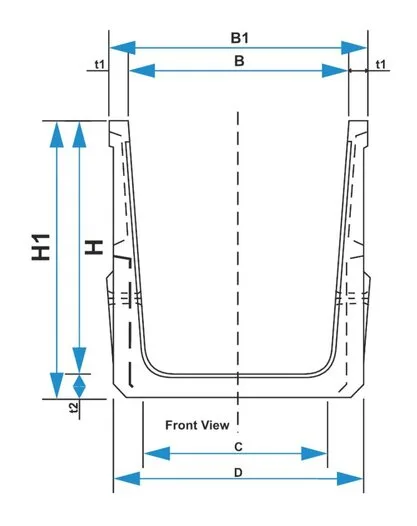

Channel ProfileOpen-top, tapered section

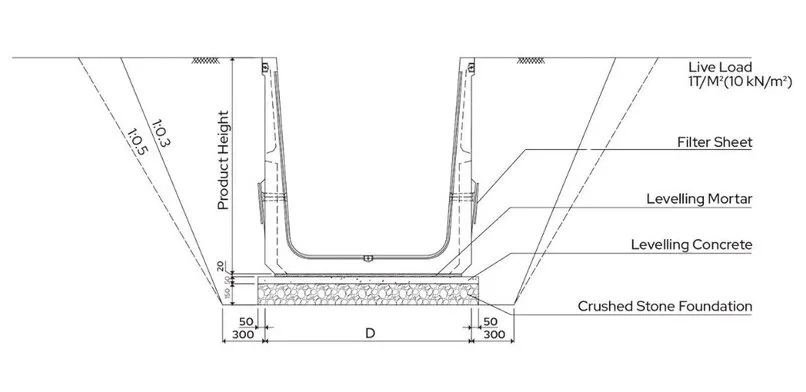

InstallationCrushed-stone foundation with levelling concrete
ApplicationsAgricultural irrigation, stormwater diversion, surface water control
