Earth Retaining Wall

Delfy Infratech’s Precast Earth Retaining Wall is designed to provide reliable soil retention and structural stability in areas exposed to sustained lateral earth pressure. Manufactured from high-strength reinforced concrete, its modular precast construction provides consistent quality, durability, and dependable performance for demanding infrastructure projects.

Ideal for highway embankments, bridge approaches, industrial plots, railway infrastructure, sloped terrain, boundary developments, and other earth-retention applications, the precast system enables faster installation with reduced on-site construction compared with conventional cast-in-situ methods. Its robust construction makes it a practical, long-lasting solution for projects where strength, stability, and efficient installation are essential.

Specification

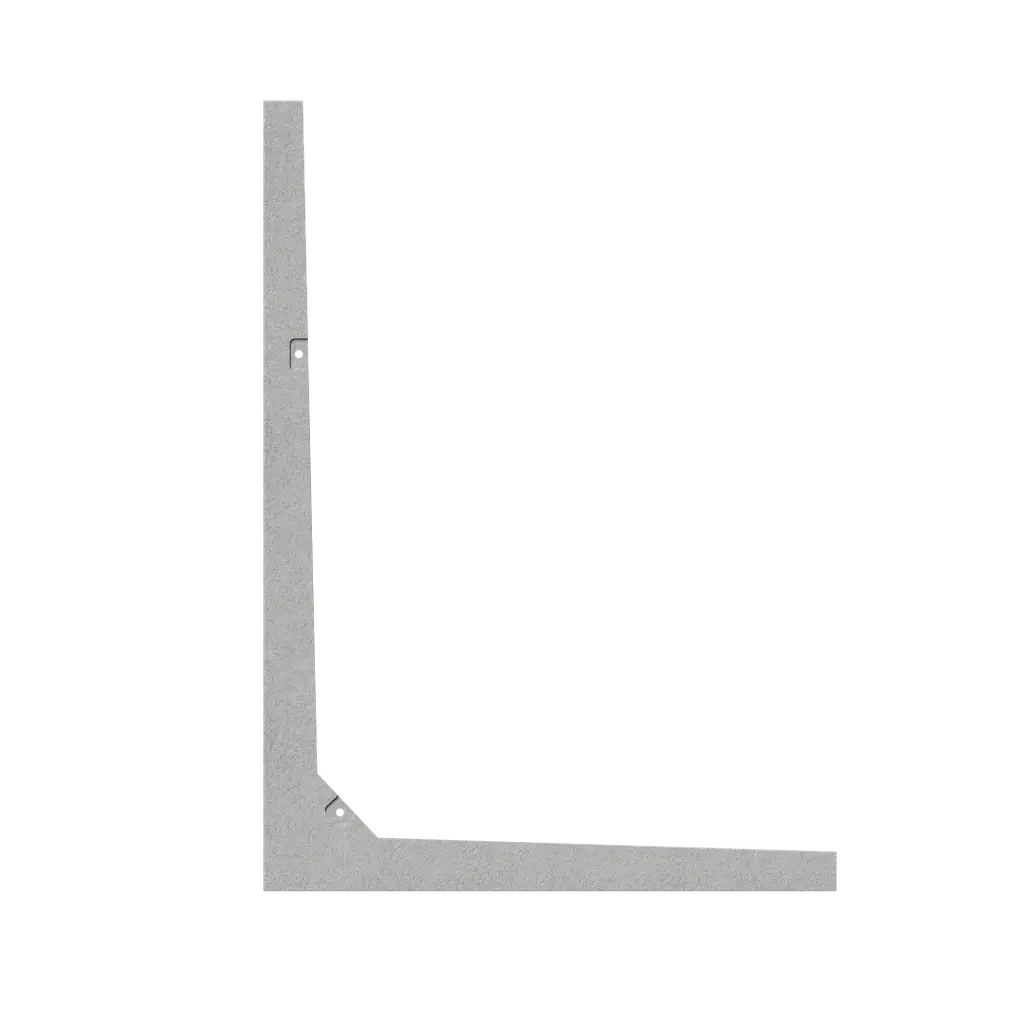

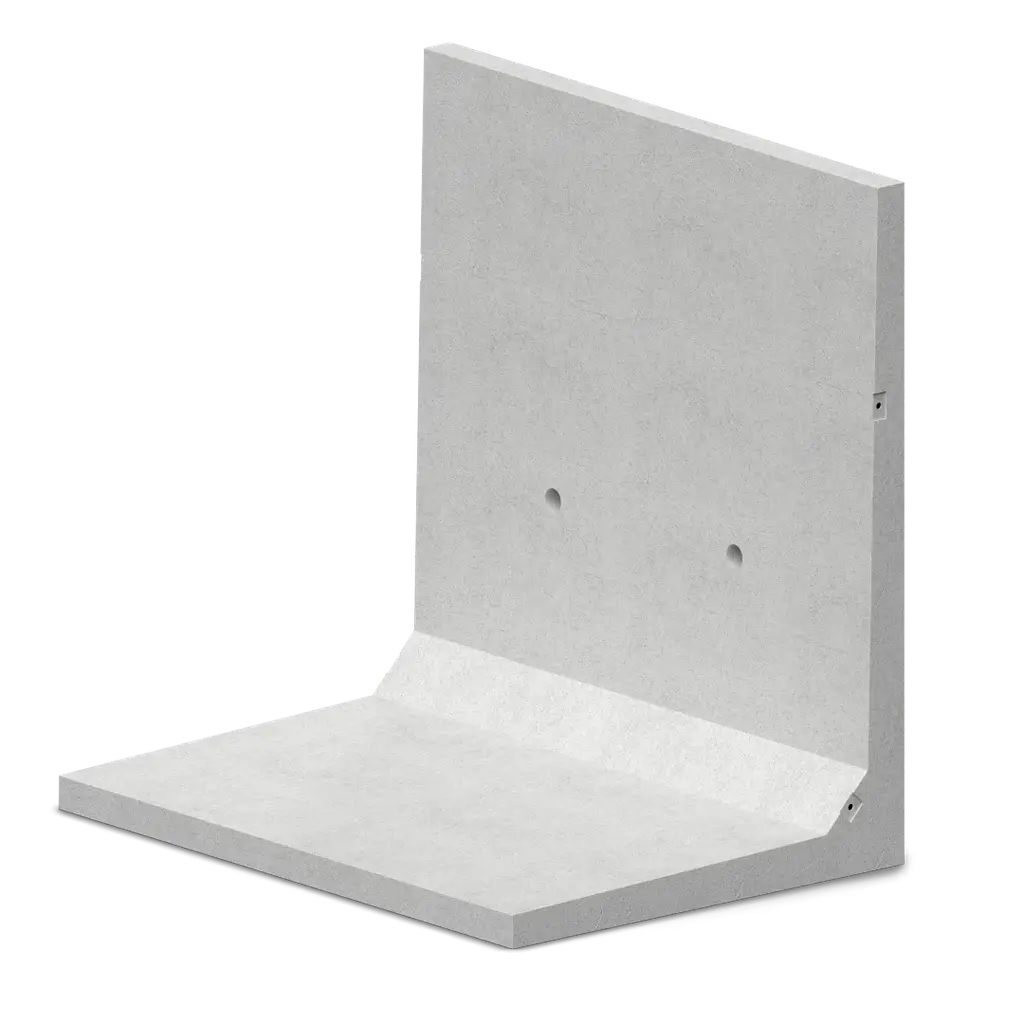

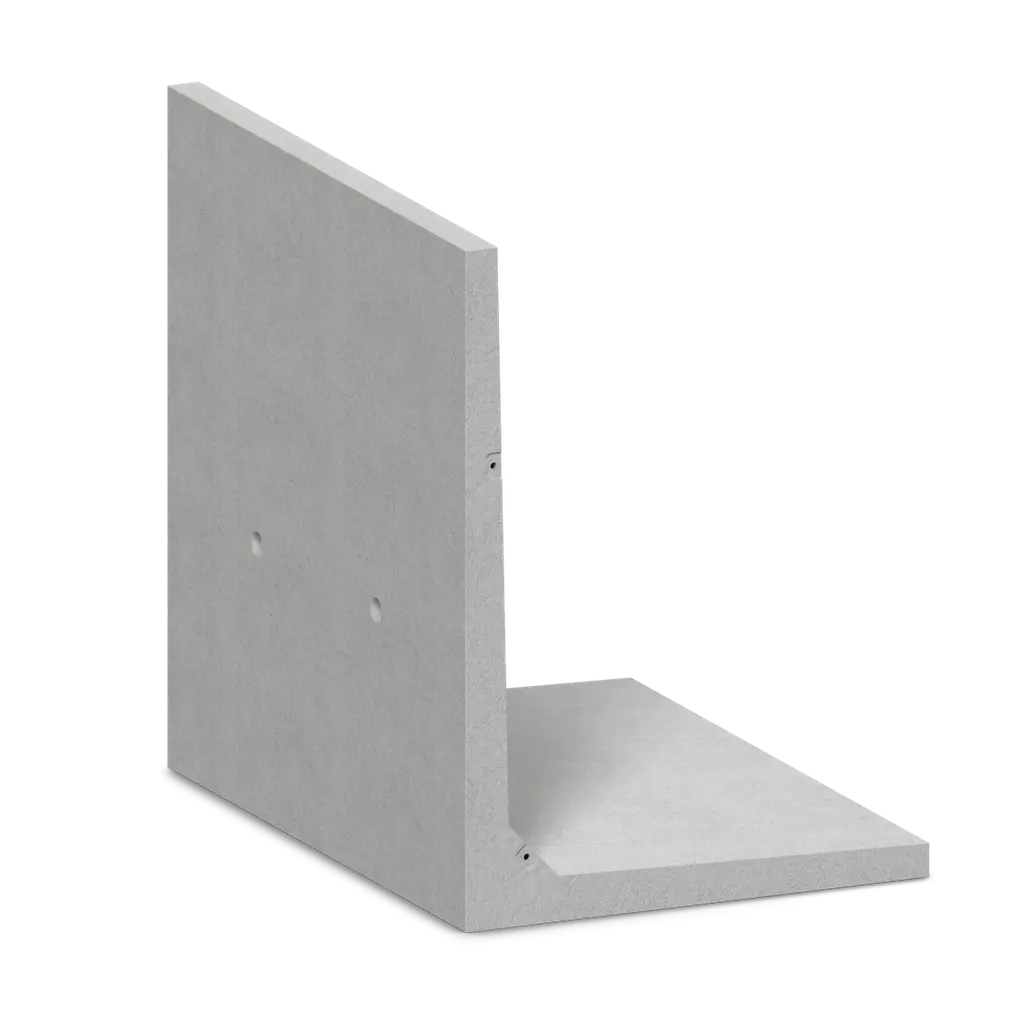

Product TypePrecast L-Shaped Retaining Wall
MaterialReinforced Precast Concrete

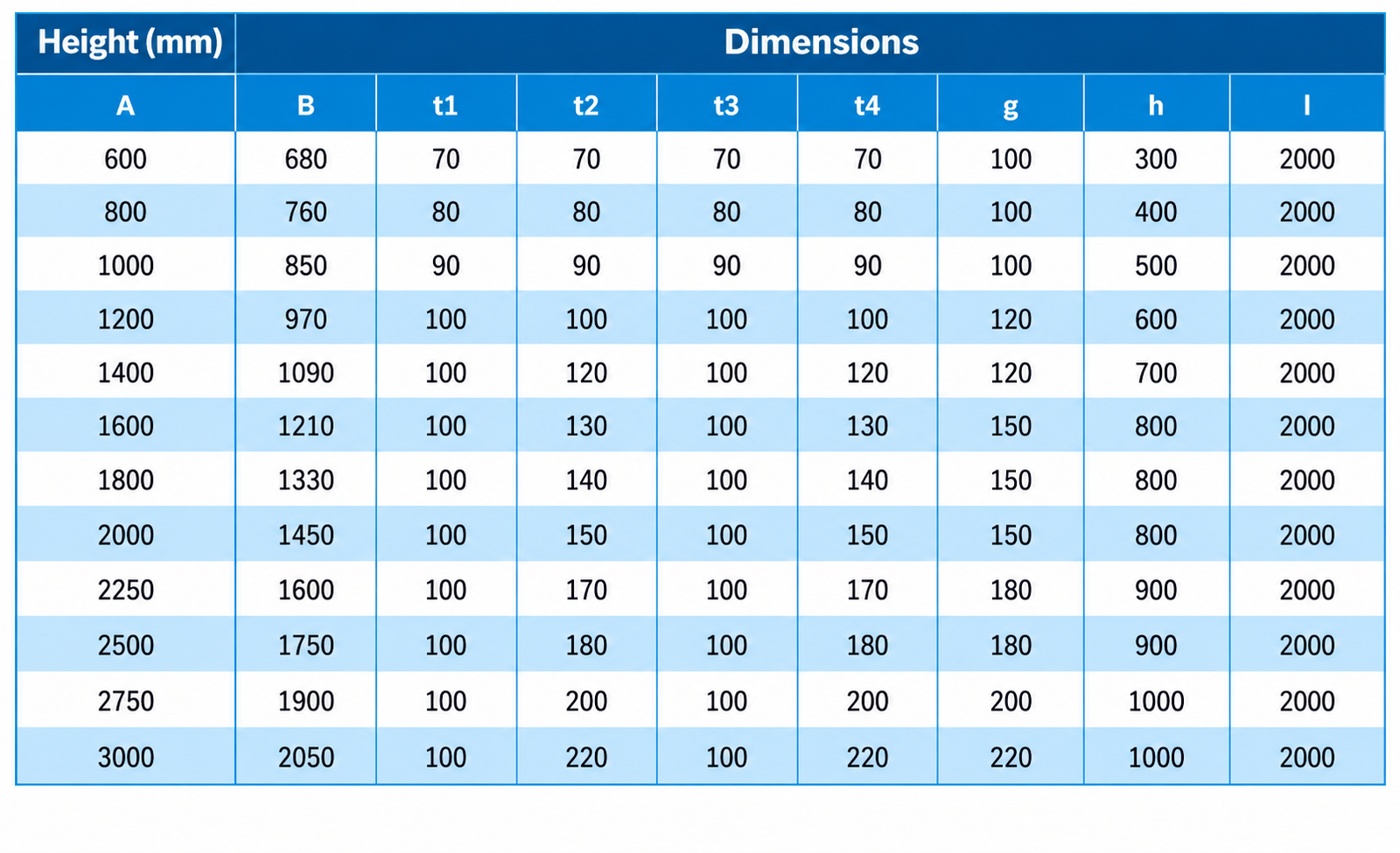

Available Height600 mm – 3000 mm
Standard Panel Length2000 mm

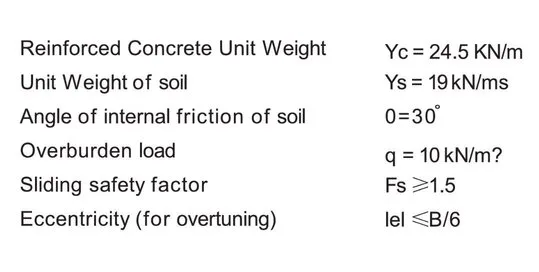

Design Soil Friction Angle30°

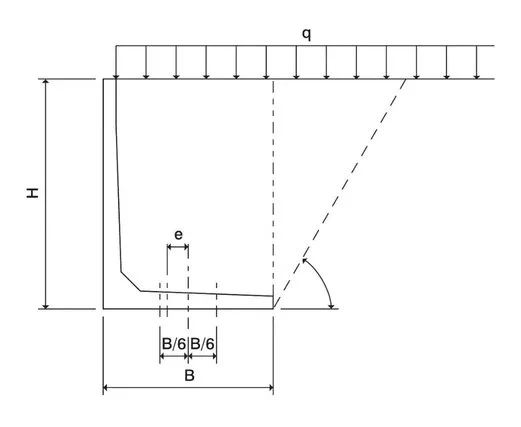

Design Overburden Load10 kN/m²
Sliding Safety Factor≥ 1.5
ApplicationsSlope stabilization, soil retention, embankments
